Drawable Class Reference

#include <Drawable.hpp>

Inheritance diagram for Drawable:

Collaboration diagram for Drawable:

Public Member Functions
	Drawable ()
	Construct a new Drawable:: Drawable object. More...
char *	getAttribute () const
	getAttribute, get the attribute More...
void	setAttribute (std::string attribute)
	setAttribute, set the attribute More...
Position	getPosition () const
	getPosition, get the position More...
void	setPosition (std::tuple< float, float > position)
	setPosition, set the position More...
Size	getSize () const
	getSize, get the size More...
void	setSize (std::tuple< float, float > size)
	setSize, set the size More...
float	getScale () const
	getScale, get the scale More...
void	setScale (float scale)
	setScale, set the scale More...
Rect	getRect () const
	getRect, get the rect More...
void	setRect (std::tuple< int, int, int, int > rect)
	setRect, set the rect More...
std::shared_ptr< Packet >	getPacket ()
	getPacket, get the packet More...
void	setHasChanged (bool hasChanged)
	setHasChanged, set if the drawable has changed More...
bool	getHasChanged () const
	getHasChanged, get if the drawable has changed More...
void	addDrawableCollision (std::shared_ptr< Drawable > drawableCollision)
	addDrawableCollision, add a drawable collision More...
std::vector< std::shared_ptr< Drawable > >	getDrawablesCollision () const
	getDrawablesCollision, get the drawables collision More...
Public Member Functions inherited from IComponentRType
virtual	~IComponentRType ()=default
	Construct a new IComponentRType object. More...

Public Attributes
int	_textureId
bool	_toDelete = false
int	_score = 0

Protected Attributes
Position	_position
Size	_size
Rect	_rect
float	_scale
bool	hasChanged = false
std::vector< std::shared_ptr< Drawable > >	_drawablesCollision
Protected Attributes inherited from IComponentRType
char *	_attribute

Detailed Description

Definition at line 21 of file Drawable.hpp.

Constructor & Destructor Documentation

Drawable()

Drawable::Drawable

(

)

Construct a new Drawable:: Drawable object.

Definition at line 16 of file Drawable.cpp.

References IComponentRType::_attribute, _textureId, setPosition(), setRect(), and setSize().

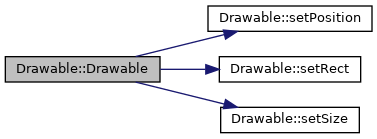

Here is the call graph for this function:

Member Function Documentation

addDrawableCollision()

void Drawable::addDrawableCollision

(

std::shared_ptr< Drawable >

drawableCollision

)

addDrawableCollision, add a drawable collision

Parameters

drawableCollision

Definition at line 170 of file Drawable.cpp.

getAttribute()

char * Drawable::getAttribute ( ) const

virtual

getAttribute, get the attribute

Returns

attribute (char *)

Implements IComponentRType.

Definition at line 30 of file Drawable.cpp.

References IComponentRType::_attribute.

getDrawablesCollision()

std::vector< std::shared_ptr< Drawable > > Drawable::getDrawablesCollision

(

)

const

getDrawablesCollision, get the drawables collision

Returns

drawablesCollision (std::vector<std::shared_ptr<Drawable>>)

Definition at line 179 of file Drawable.cpp.

getHasChanged()

bool Drawable::getHasChanged

(

)

const

getHasChanged, get if the drawable has changed

Returns

hasChanged (bool)

Definition at line 161 of file Drawable.cpp.

References hasChanged.

getPacket()

std::shared_ptr< Packet > Drawable::getPacket

(

)

getPacket, get the packet

Returns

packet (std::shared_ptr<Packet>)

Definition at line 125 of file Drawable.cpp.

References IComponentRType::_attribute, _textureId, drawable::attribute, drawable::attribute2, and drawable::id.

getPosition()

std::tuple< float, float > Drawable::getPosition

(

)

const

getPosition, get the position

setAttribute, set the attribute

Returns

position (std::tuple<float, float>)

Parameters

attribute

(srd::tuple<float, float>)

Definition at line 51 of file Drawable.cpp.

getRect()

std::tuple< int, int, int, int > Drawable::getRect

(

)

const

getRect, get the rect

Returns

rect (std::tuple<int, int, int, int>)

Definition at line 106 of file Drawable.cpp.

getScale()

float Drawable::getScale

(

)

const

getScale, get the scale

Returns

scale (float)

Definition at line 79 of file Drawable.cpp.

References _scale.

getSize()

std::tuple< float, float > Drawable::getSize

(

)

const

getSize, get the size

Returns

size (std::tuple<float, float>)

Definition at line 70 of file Drawable.cpp.

setAttribute()

void Drawable::setAttribute ( std::string  attribute )

virtual

setAttribute, set the attribute

Parameters

attribute

Implements IComponentRType.

Definition at line 39 of file Drawable.cpp.

References IComponentRType::_attribute, and hasChanged.

setHasChanged()

void Drawable::setHasChanged

(

bool

hasChanged

)

setHasChanged, set if the drawable has changed

Parameters

hasChanged

Definition at line 152 of file Drawable.cpp.

References hasChanged.

setPosition()

void Drawable::setPosition

(

std::tuple< float, float >

position

)

setPosition, set the position

Parameters

position

Definition at line 60 of file Drawable.cpp.

References hasChanged.

Referenced by Drawable().

Here is the caller graph for this function:

setRect()

void Drawable::setRect

(

std::tuple< int, int, int, int >

rect

)

setRect, set the rect

Parameters

rect

Definition at line 115 of file Drawable.cpp.

References hasChanged.

Referenced by Drawable().

Here is the caller graph for this function:

setScale()

void Drawable::setScale

(

float

scale

)

setScale, set the scale

Parameters

scale

Definition at line 97 of file Drawable.cpp.

References _scale.

setSize()

void Drawable::setSize

(

std::tuple< float, float >

size

)

setSize, set the size

Parameters

size

Definition at line 88 of file Drawable.cpp.

References hasChanged.

Referenced by Drawable().

Here is the caller graph for this function:

Member Data Documentation

_drawablesCollision

std::vector<std::shared_ptr<Drawable> > Drawable::_drawablesCollision

protected

Definition at line 153 of file Drawable.hpp.

_position

Position Drawable::_position

protected

Definition at line 148 of file Drawable.hpp.

_rect

Rect Drawable::_rect

protected

Definition at line 150 of file Drawable.hpp.

_scale

float Drawable::_scale

protected

Definition at line 151 of file Drawable.hpp.

Referenced by getScale(), and setScale().

_score

int Drawable::_score = 0

Definition at line 145 of file Drawable.hpp.

_size

Size Drawable::_size

protected

Definition at line 149 of file Drawable.hpp.

_textureId

int Drawable::_textureId

Definition at line 143 of file Drawable.hpp.

Referenced by Drawable(), and getPacket().

_toDelete

bool Drawable::_toDelete = false

Definition at line 144 of file Drawable.hpp.

hasChanged

bool Drawable::hasChanged = false

protected

Definition at line 152 of file Drawable.hpp.

Referenced by getHasChanged(), setAttribute(), setHasChanged(), setPosition(), setRect(), and setSize().

---

The documentation for this class was generated from the following files:

• src/lib/r_type/components/Drawable.hpp
• src/lib/r_type/components/Drawable.cpp
